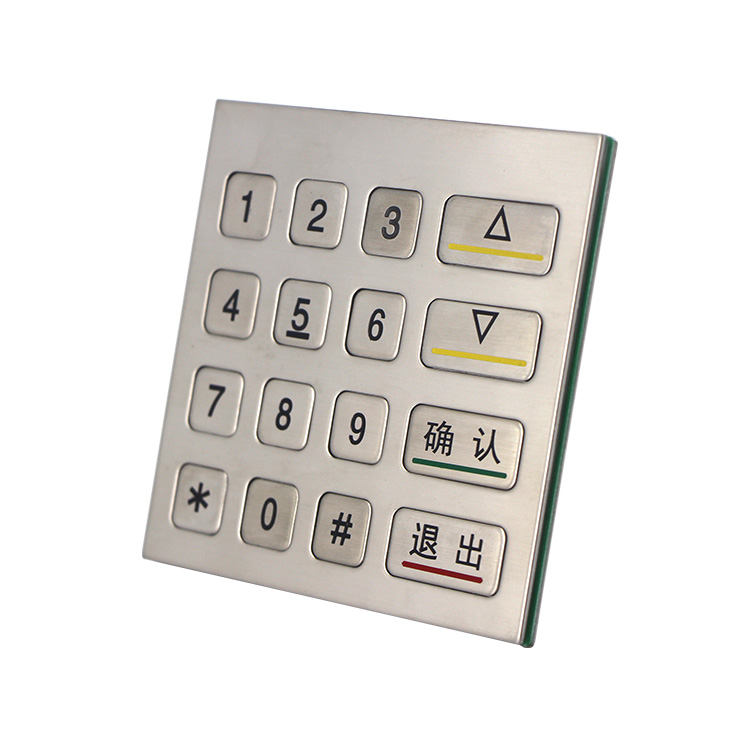

Weatherproof 16keys metal custom atm function usb connector keyapd B725

Description：

Specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery. Keys and front panel are built from SUS304# stainless steel with high resistance to impact and vandalism and is also sealed to IP65.

product description

1.The material of keypad is stainless steel.

2.10 number buttons and 6 function buttons.

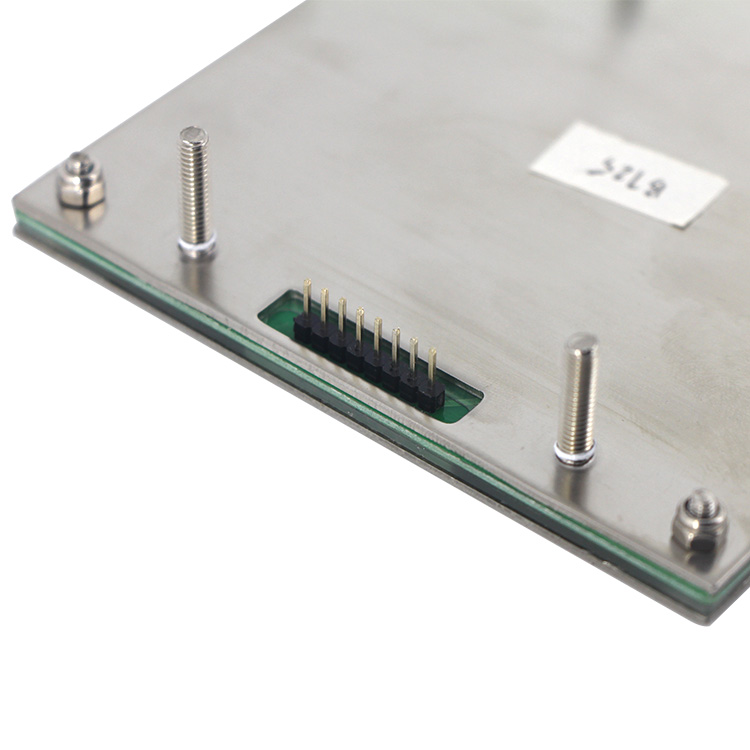

3.Double-sided board, Good for contact of gold-finger.

4.Vandal resistant, Waterproof.

1.The keys layout can be customized.

2.The front panel and bottom panel can be customized.

Specification

Input Voltage	3.3V/5V
Waterproof Grade	IP65
Actuation Force	250g/2.45N(Pressure point)
Rubber Life	More than 500 thousand cycles
Key Travel Distance	0.45mm
Working Temperature	-25℃～+65℃
Storage Temperature	-40℃～+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60Kpa-106Kpa
