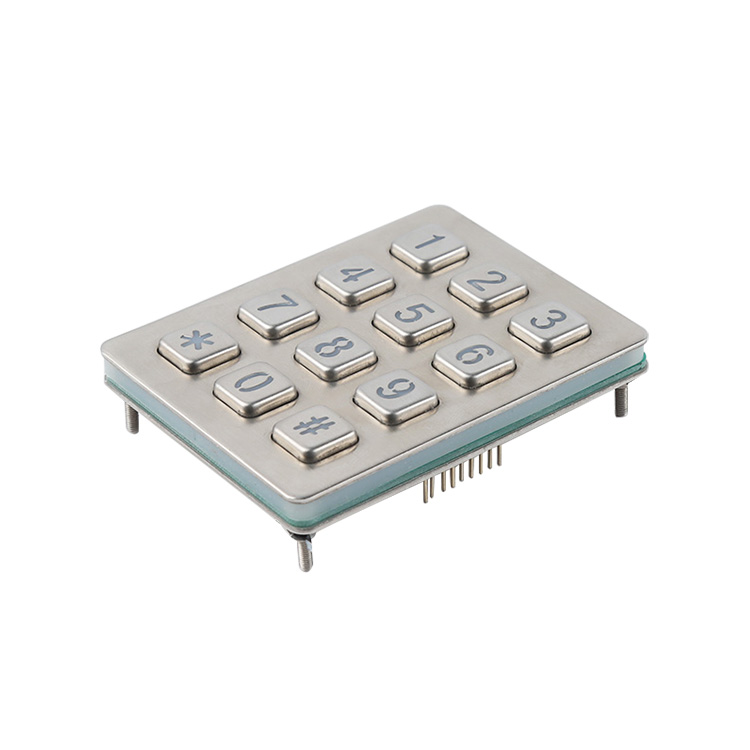

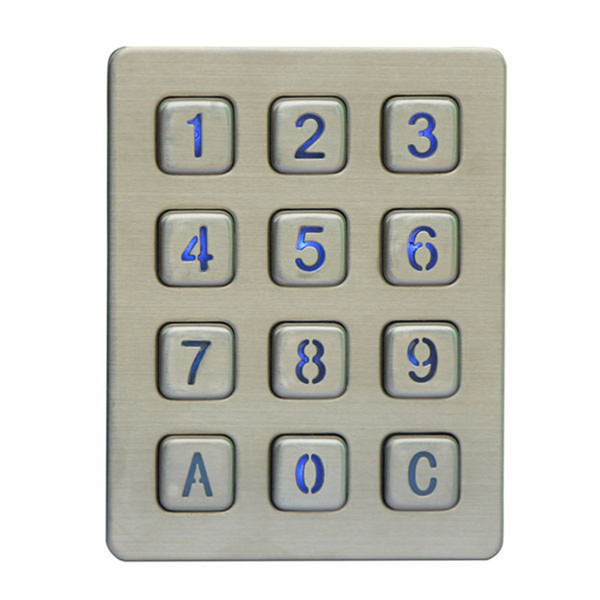

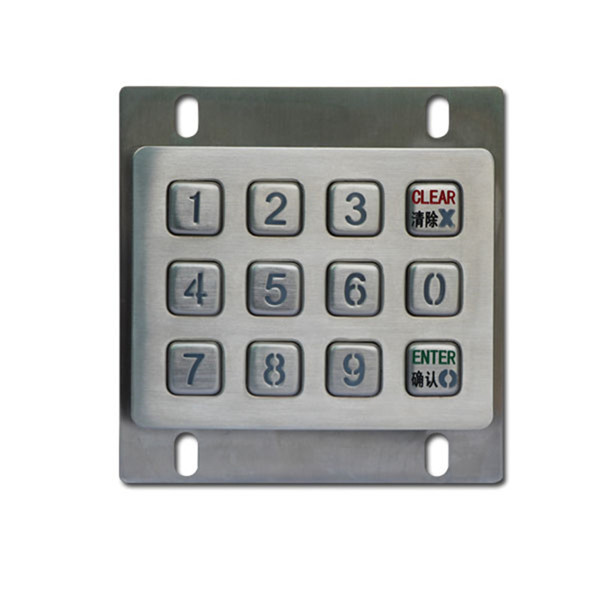

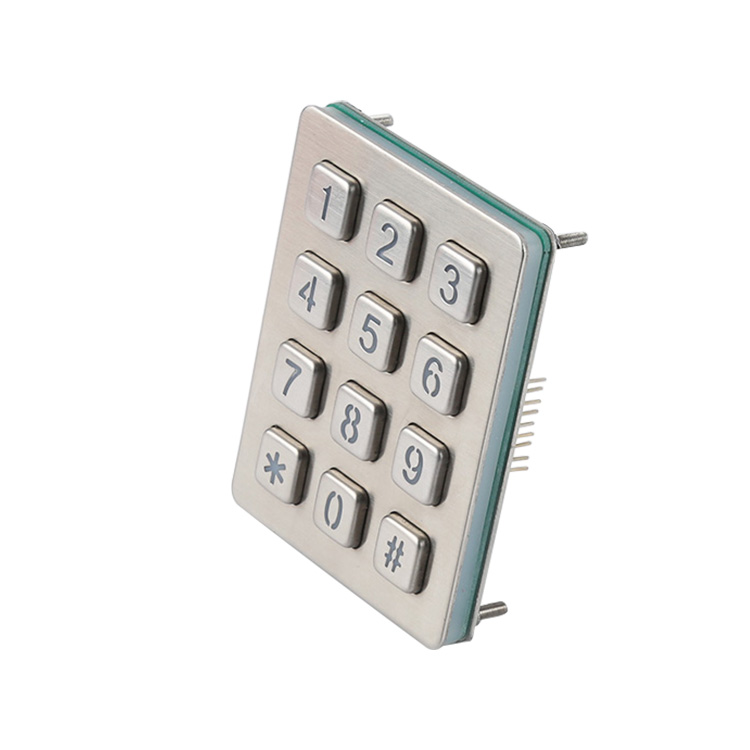

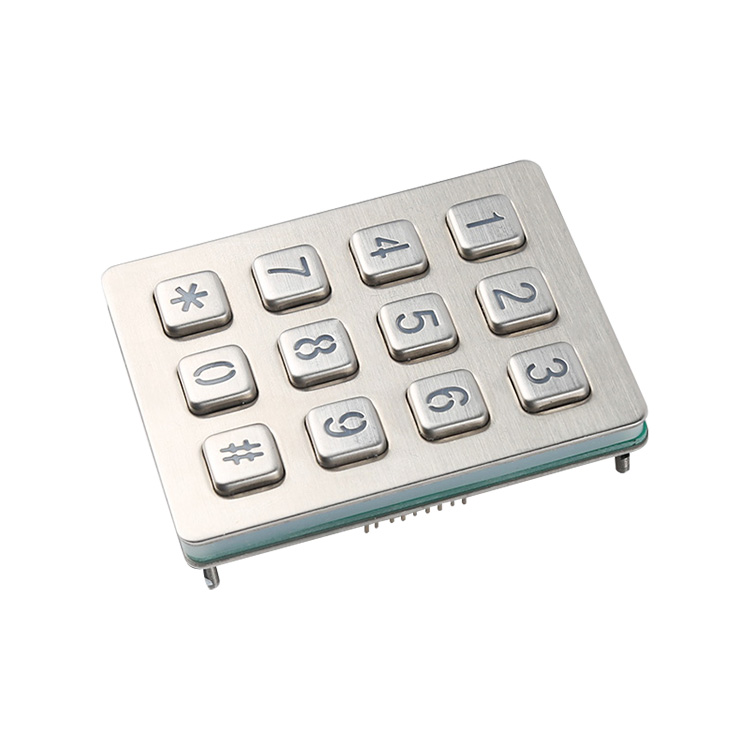

12 keys metal IP65 waterproof illuminated access control keypad B880

Description：

It is mainly for public environment applications, such as vending machines, ticket machines, payment terminals, access control systems and industrial machinery. Keys and front panel are built from SUS304# stainless steel with high resistance to impact and vandalism and is also sealed to IP54.

product description

1. Material: 304# brushed stainless steel.

2. Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging

3. Stainless steel keypad frame is available as customer’s request.

4. Double-sided PCB (customized), contacts Gold-finger use of gold process, the contact is more reliable

1.Buttons layout could be customized as clients’ request.

2.Keypad signal is optional. XH plug/ Pins header/ USB/ Other

Specification

Input Voltage	3.3V/5V
Waterproof Grade	IP65
Actuation Force	250g/2.45N(Pressure point)
Rubber Life	More than 1 million cycles
Key Travel Distance	0.45mm
Working Temperature	-25℃～+65℃
Storage Temperature	-40℃～+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60Kpa-106Kpa
LED Color	Customized
