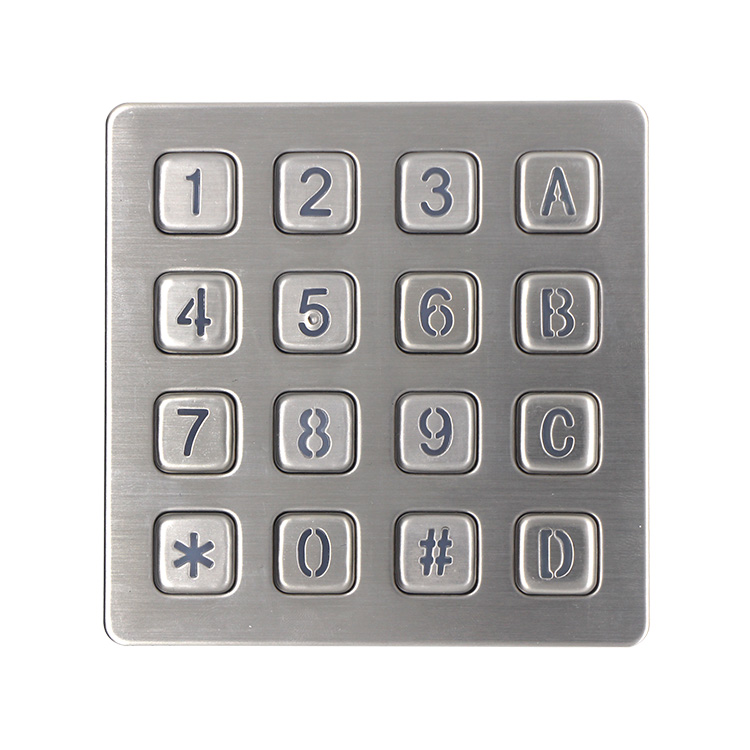

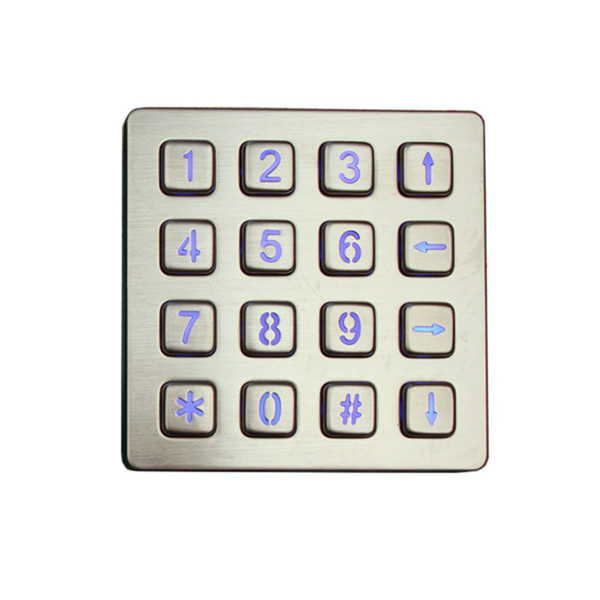

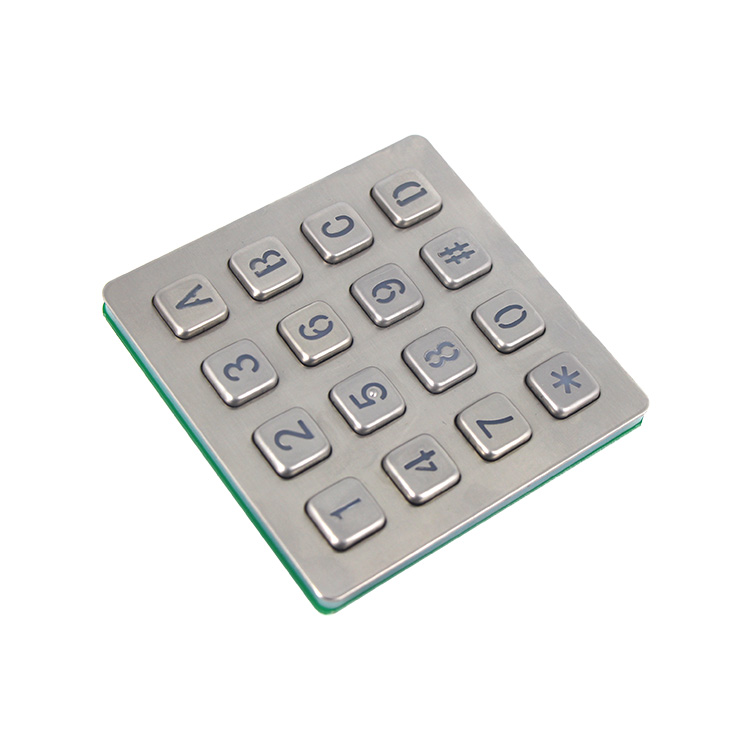

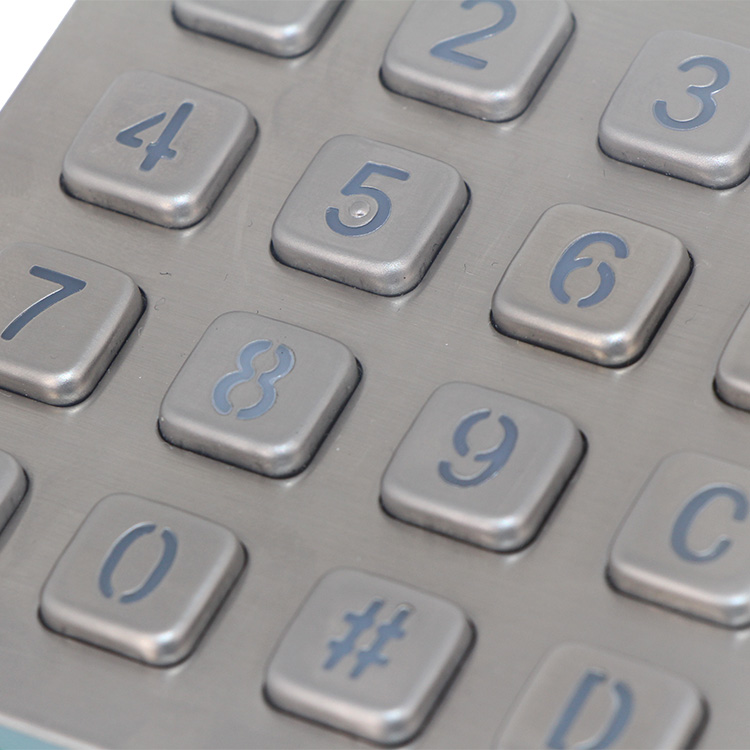

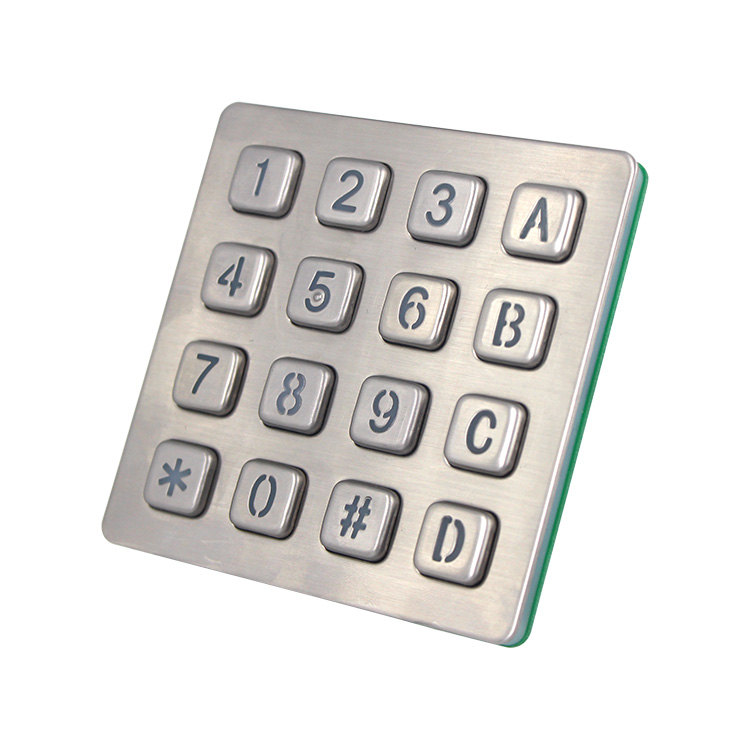

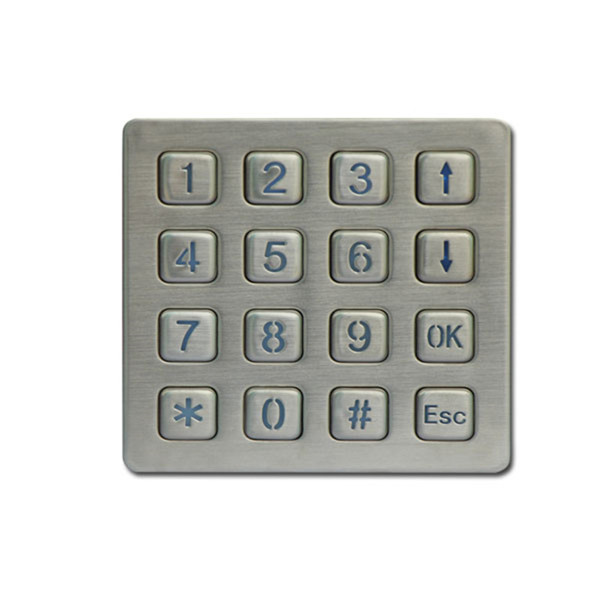

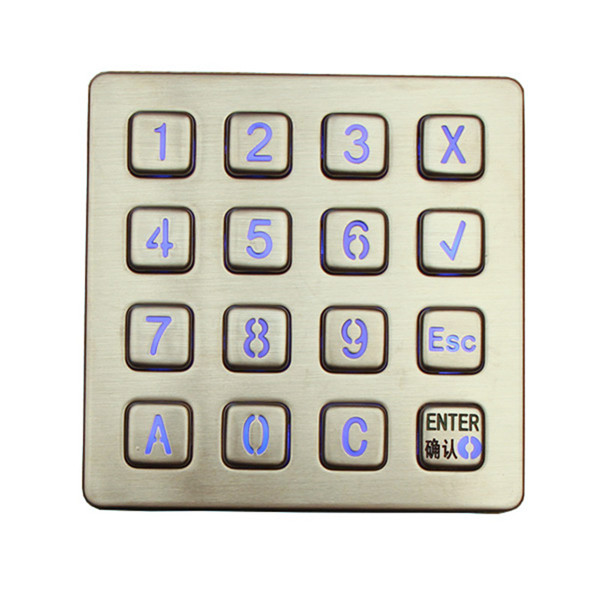

Vandal Proof 4x4 16 buttons kiosk keypad metal door lock keypad B881


Description：

It is mainly for access control system, vending machine, security system and some other public facilities.

Contact us
  • product description

1. Material: 304# brushed stainless steel.

2. Conductive silicone rubber produced using natural rubber, wear resistance, corrosion resistance, anti-aging

3. Stainless steel keypad frame is available as customer’s request.


1.Buttons layout could be customized as clients’ request.

2. keypad signal is optional (matrix/ USB/ RS232/ RS485/ UART)


Specification

Input Voltage

3.3V/5V

Waterproof Grade

IP65

Actuation Force

250g/2.45N(Pressure point)

Rubber Life

More than 1 million cycles

Key Travel Distance

0.45mm

Working Temperature

-25℃～+65℃

Storage Temperature

-40℃～+85℃

Relative Humidity

30%-95%

Atmospheric Pressure

60Kpa-106Kpa

LED Color

Customized


Application

The keypad will used in access control system, vending machines and so on.
