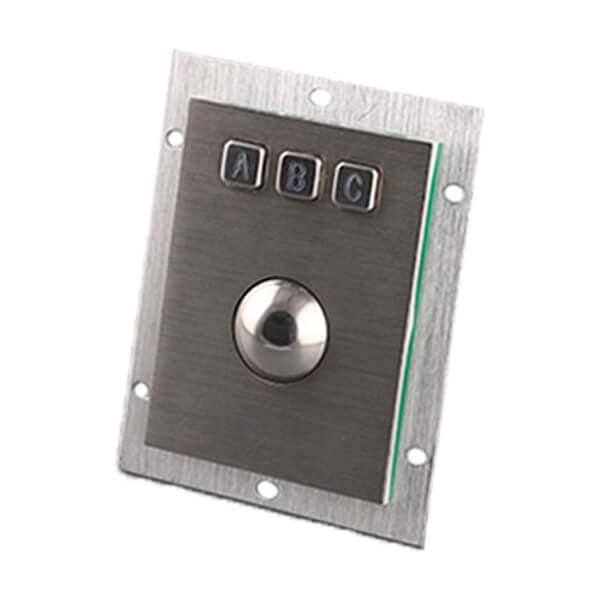

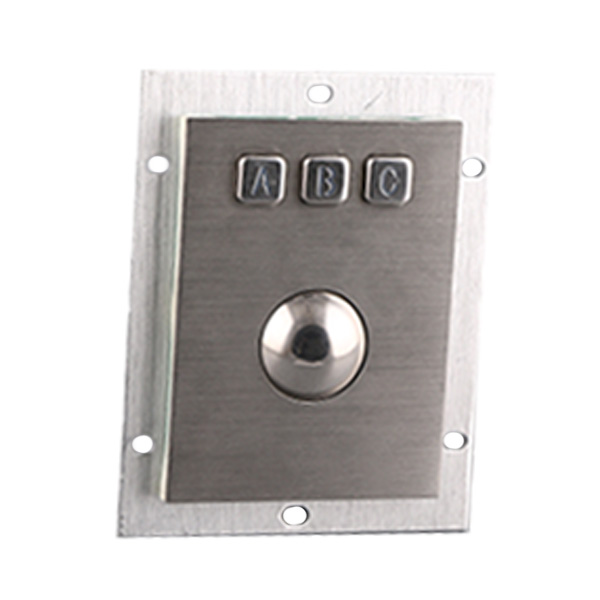

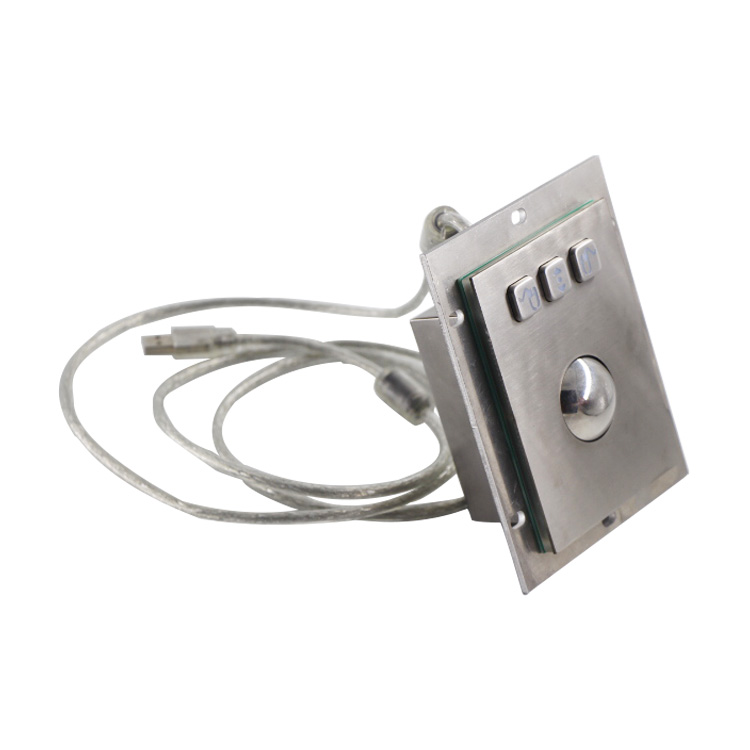

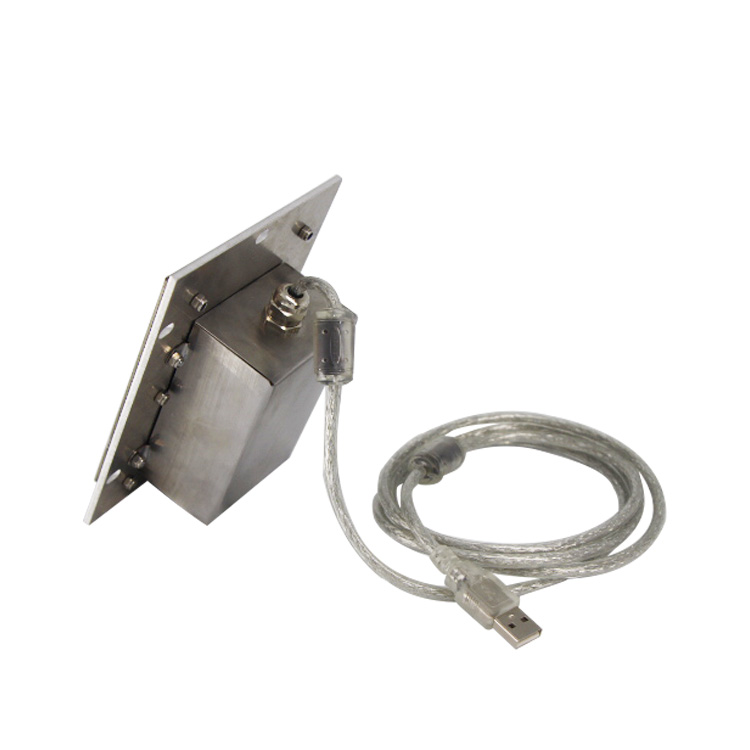

Military IP65 waterproof capacitive trackball usb alarm systems keypad B805
Description:
It is mainly for military environment, security system and some other public facilities.
- product description
1. Key frame uses SUS304# brushed stainless steel..
2. Buttons are made of high quality zinc alloy, with a strong anti-destruction capability.
3. Keypad with the trackball.
4. LED color is customized.
1. Material: SUS304# brushed stainless steel.
2. Double side PCB with golden finger, resistance to oxidation.
3. 800 DPI photoelectric ball and 1200DPI laser ball are available.
4. Suitable for DOS/Windows95/98/NT/NE/2000/2003/XP/Vista/win7/Linux/Unix/Mac OSX system.
Specification
Input Voltage |
Input Voltage:5V, Current=30mA |
Waterproof Grade |
IP67 |
Actuation Force |
120g/1.17N(Pressure point) |
Rubber Life |
More than 2 million cycles |
Key Travel Distance |
1.5mm |
Working Temperature |
-25℃~+65℃ |
Storage Temperature |
-40℃~+85℃ |
Relative Humidity |
30%-95% |
Atmospheric Pressure |
60Kpa-106Kpa |
LED Color |
Customized |
Application
Normally used in military products.
