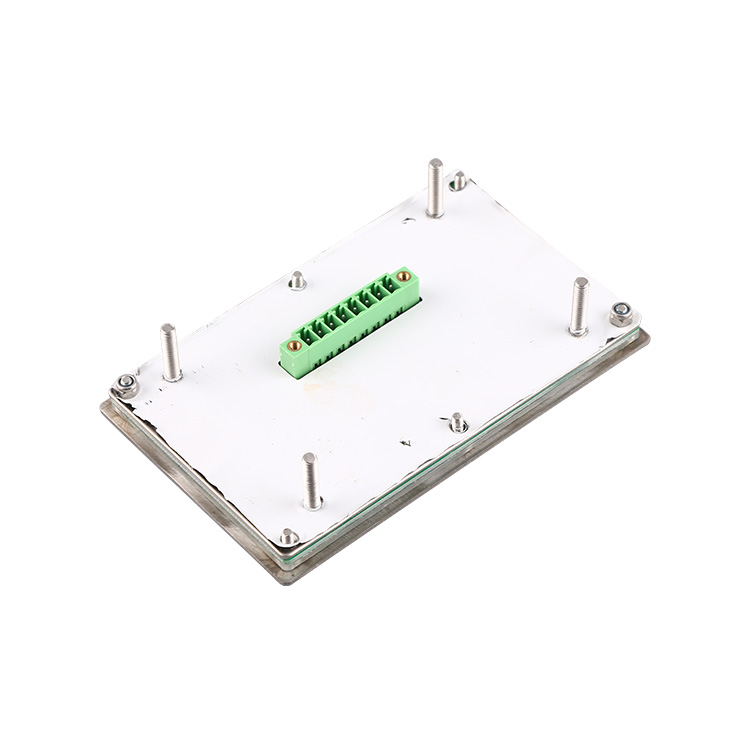

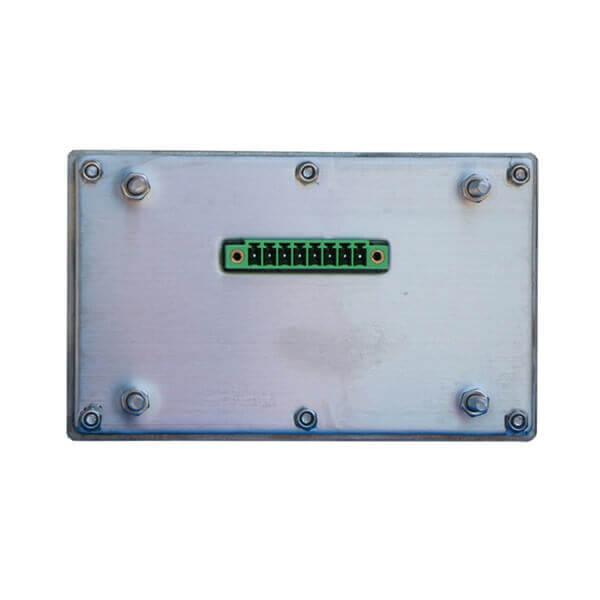

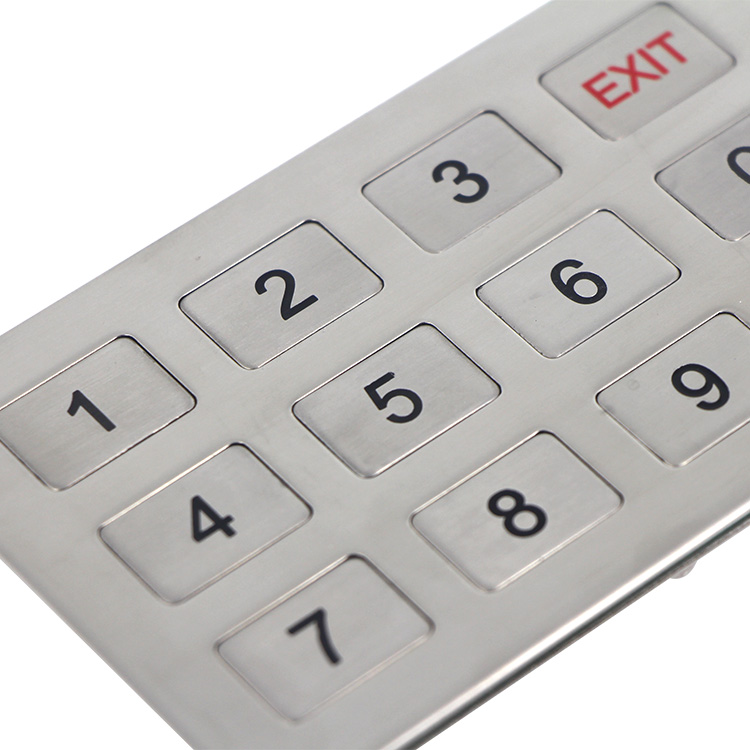

4x3 matrix 12 keys custom garage door rs485 kiosk keypad B703

Description：

The keypad specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery. Keys and front panel are built from SUS304# stainless steel with high resistance to impact and vandalism and is also sealed to IP65.

product description

1.12 Keys stainless steel keypad, Dot matrix keypad .

2.carbon-on-gold key switch technology .

3.rear mounting/bracket mounting.

1.Buttons layout could be customized as clients’ request.

2.With the exception of the telephone, the keyboard can also be designed for other purposes

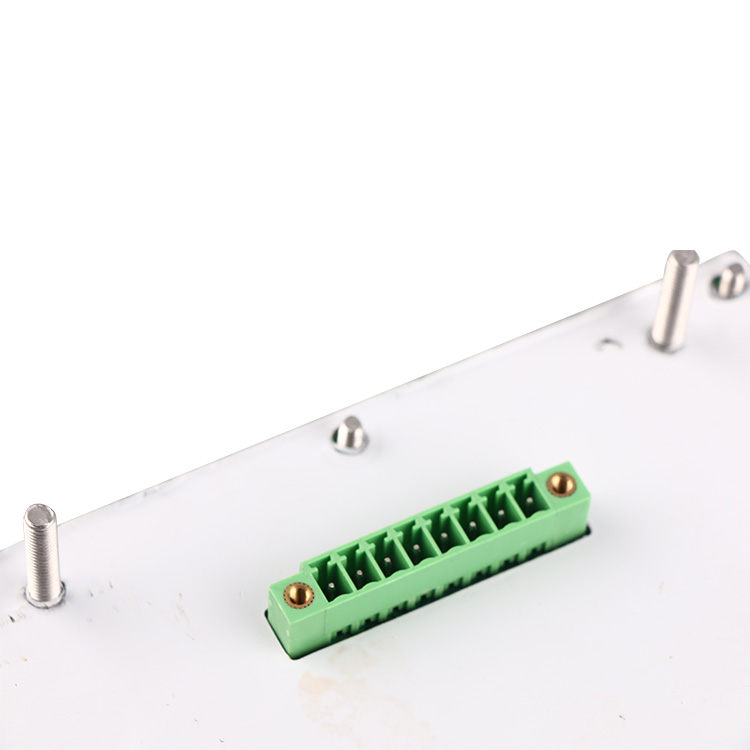

3.Keypad connector can be customized

Specification

Input Voltage	3.3V/5V
Waterproof Grade	IP65
Actuation Force	250g/2.45N(Pressure point)
Rubber Life	More than 500 thousand cycles
Key Travel Distance	0.45mm
Working Temperature	-25℃～+65℃
Storage Temperature	-40℃～+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60Kpa-106Kpa
