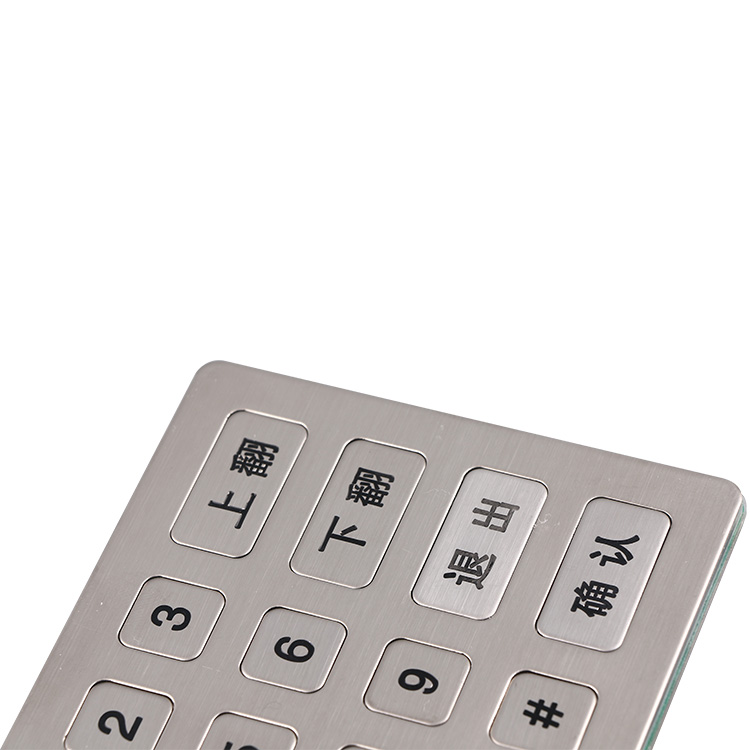

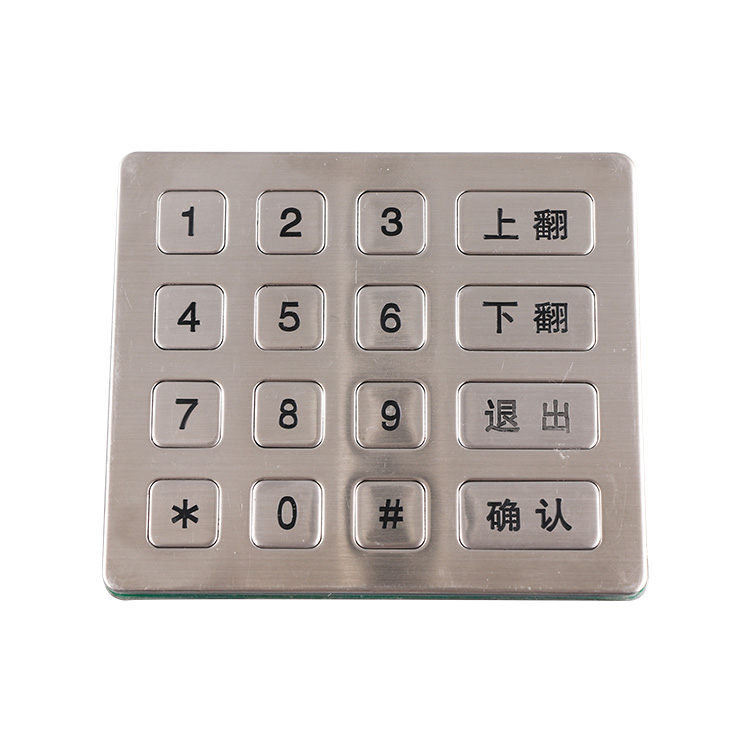

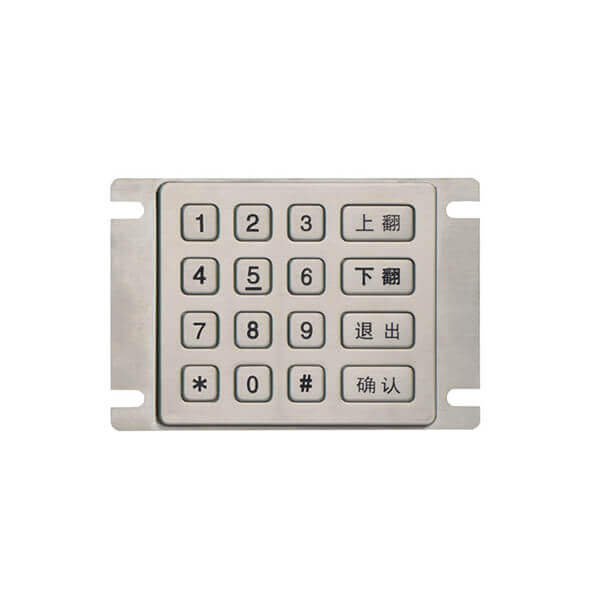

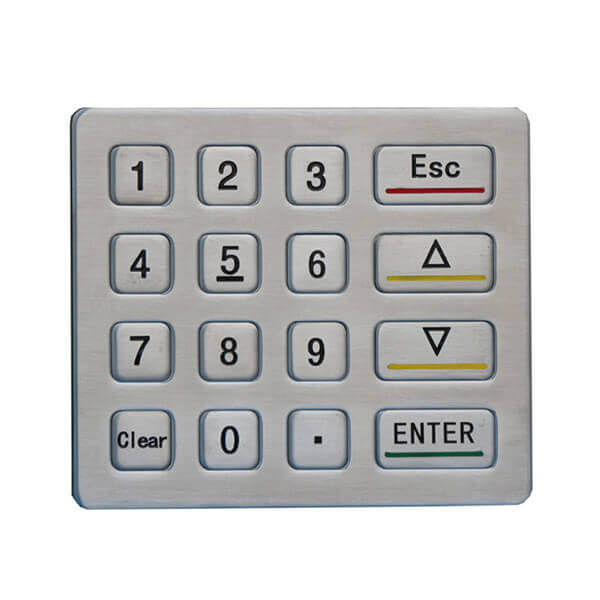

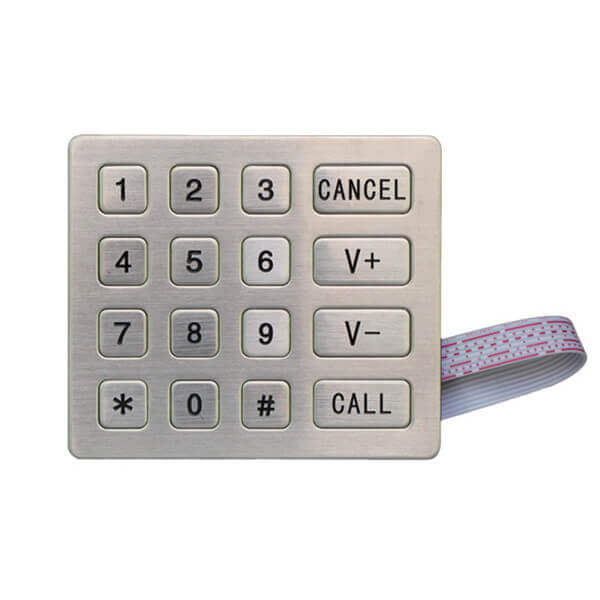

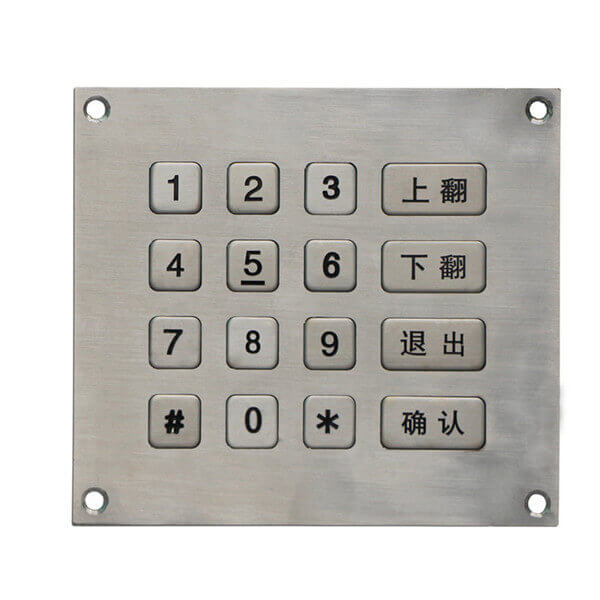

Vandal proof 4x4 16 keys ATM safes serial calculator electronic keypad B713
Description:
It's mainly for fuel dispenser;vending machine,access control system, security system, ticket machines, payment terminals and other applications.
- product description
1.Panels, buttons made of high quality stainless steel, has a strong anti-destructive
2.Font button surface and pattern can be customized according to customer requirements
3.PCB double sided, metal dome lines, access to reliable
4.Key word laser engraving, etching, oil filled, high strength paint
5.4x4 keyboard matrix scanning,10 numeric keys,6 functional keys
1.Buttons layout could be customized as clients’ request.
2.With the exception of the telephone, the keyboard can also be designed for other purposes
3.Keypad connector is optional
Specification
Input Voltage |
3.3V/5V |
Waterproof Grade |
IP65 |
Actuation Force |
250g/2.45N(Pressure point) |
Rubber Life |
More than 500 thousand cycles |
Key Travel Distance |
0.45mm |
Working Temperature |
-25℃~+65℃ |
Storage Temperature |
-40℃~+85℃ |
Relative Humidity |
30%-95% |
Atmospheric Pressure |
60Kpa-106Kpa |
Application
Mainly designed for fuel dispenser, kiosk, ticket terminals and so on.
