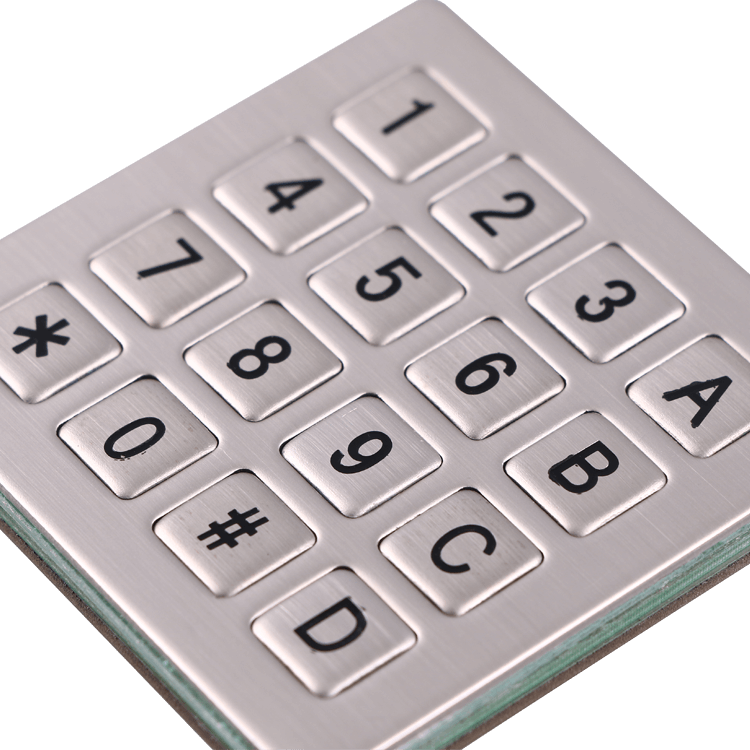

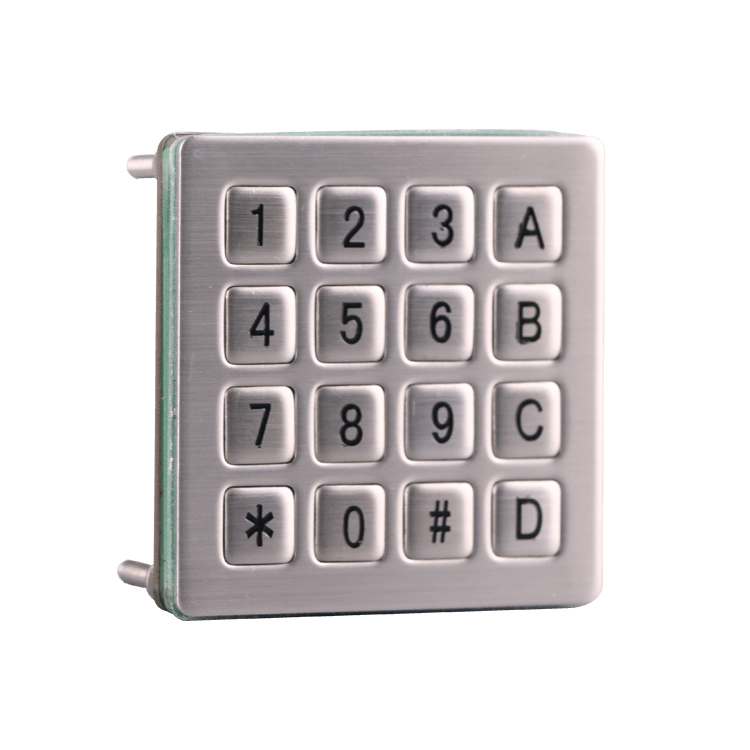

4x4 16 keys metallic atm matrix cnc machine kiosk keypad B706

Description：

The 12 or 16 key S.series keypads are specially designed for public environment applications, such as vending machines, ticket machines, payment terminals, telephones, access control systems and industrial machinery.

product description

1.16 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 6 function keys.

2.Working life: 1 million cycles of operation per key.

3.Easy to install and maintenance; flush mount.

1.Surface treatment of frame and keys: satin-finished or mirror polish.

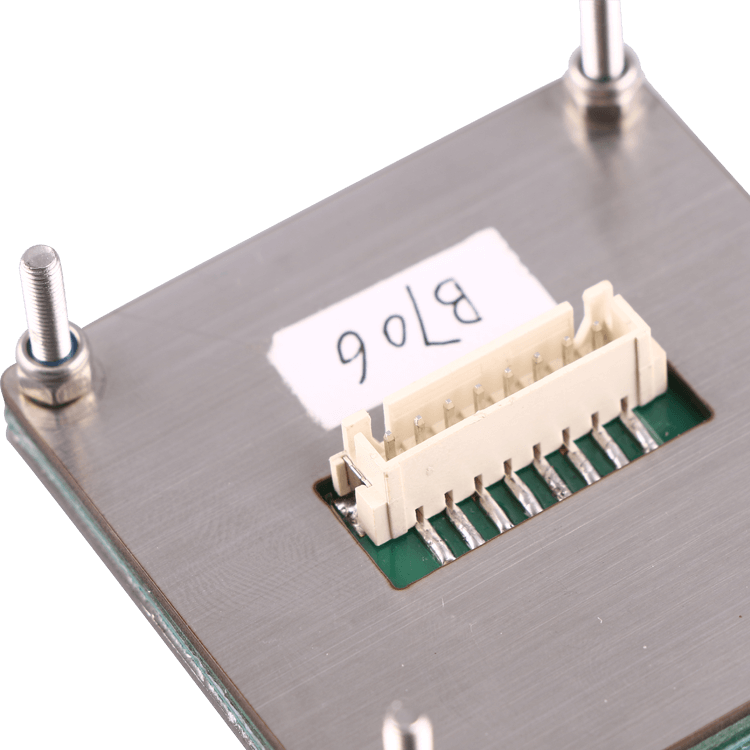

2.Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

Specification

Input Voltage	3.3V/5V
Waterproof Grade	IP65
Actuation Force	250g/2.45N(Pressure point)
Rubber Life	More than 500 thousand cycles
Key Travel Distance	0.45mm
Working Temperature	-25℃～+65℃
Storage Temperature	-40℃～+85℃
Relative Humidity	30%-95%
Atmospheric Pressure	60Kpa-106Kpa
