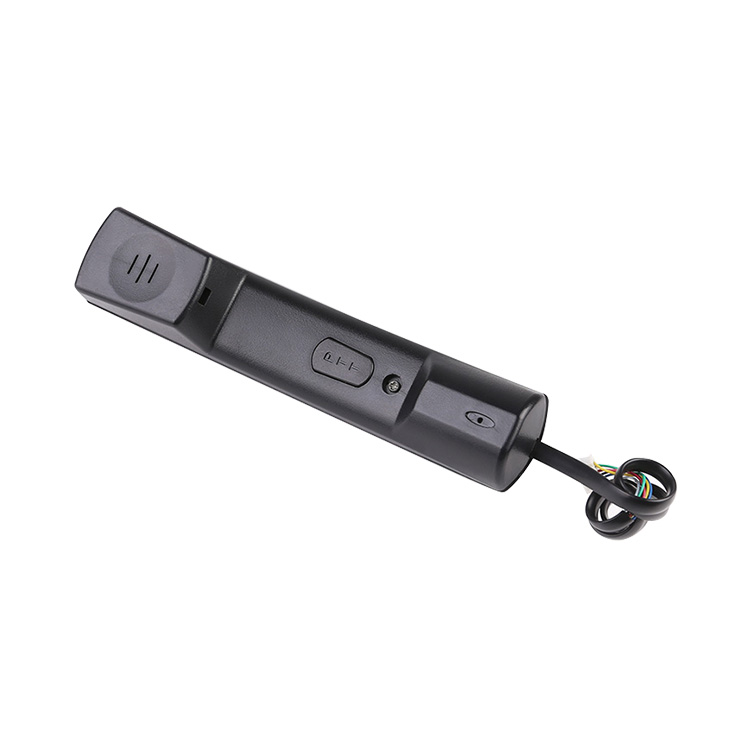

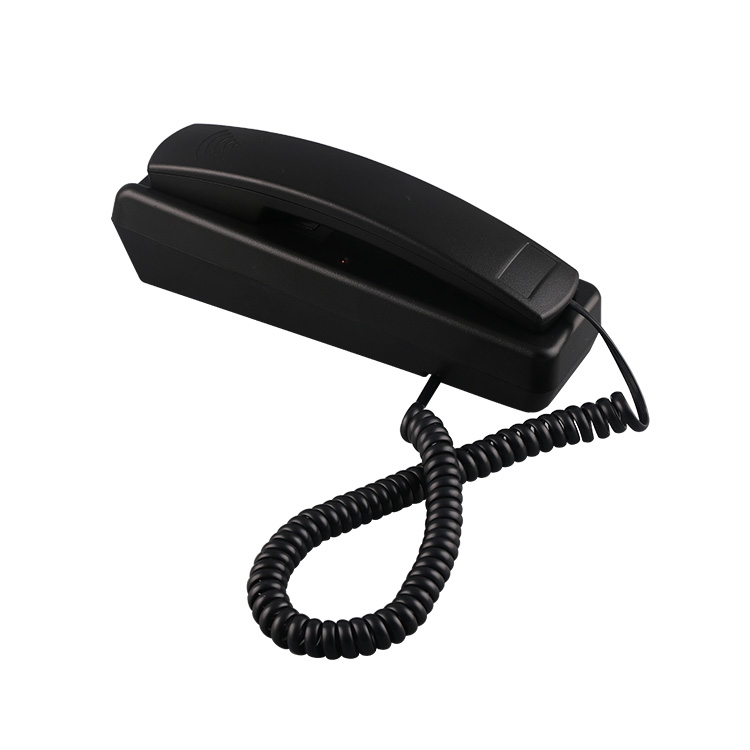

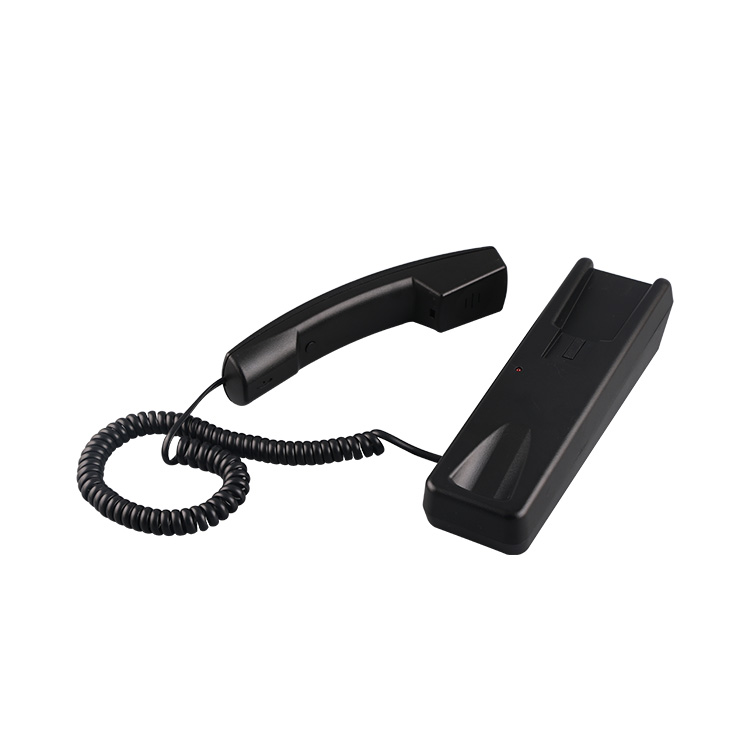

Voip USB handset with stand and ptt switch A16
Description：
It is mainly designed for voip telephone, self-service PC, access control system, industrial telephone, vending machine, security system and some other public facilities. This handset is with basic stands and communication mainboard. You could answer a call after connect it with telecom line.
- product description
Material:
1. RoHS approved ChiMei Polycarbonate (Optional)
2. UL/RoHS approved ChiMei Acrylate Styrene Acrylonitrile (Default)
3. PC copolymer with enhanced UV stabilization Lexan Resin SLX2432T (Optional)
4. Explosion-proof Carbon loaded ABS and flame resistant ABS material are available
Cord details:
1. PVC curly cord (Default)
- Standard cord length 13.7 inch in retracted, 6 feet after extended (Default)
- Customized different length is available.
2. Weather resistant PVC curly cord (Optional)
3. Hytrel curly cord (Optional)
Specification
|
Waterproof Grade |
IP65 |
|
Ambient Noise |
≤60dB |
|
Working Frequency |
300～3400 Hz |
|
SLR |
5～15 dB |
|
RLR |
-7～2 dB |
|
STMR |
≥7 dB |
|
Working Temperature |
-25℃～+65℃ |
|
Relative Humidity |
≤95％ |
|
Atmospheric Pressure |
80～110 K Pa |
1. Standard Receiver-Dynamic EA1511 (Default)
- DC Resistance : 150±20% ohm @ 1KHz
- Frequency Response Range: 300 Hz-3400 Hz
- Sensitivity: 93±3 dB at 60mv
- Impedance: 150±20% ohm at 1 KHz
Microphone:
1. Standard EB5421 Electret Microphone (Default)
-Directivity: Omni-directional
- Standard Operation Voltage: +4.5VDC
- Sensitivity: -34 ±2dB (0dB=1V/Pa,1KHz)
- Impedance: 2.2KΩ(Maximum)
Connector can be chosen: RJ12 plug,USB,Audio Jack, Aviation Joint, XLR Connector,ect.
Application
It is mainly designed for voip telephone, self-service PC, access control system, industrial telephone, vending machine, security system and some other public facilities. This handset is with basic stands and communication mainboard. You could answer a call after connect it with telecom line.
